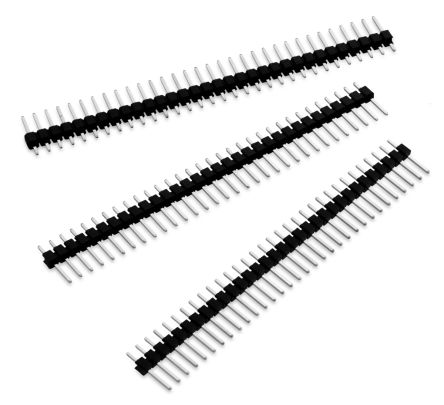

Image is for your reference only,please check specifications for details
- 61301611121 - Wurth Elektronik GmbH & Co. KG, Germany.
-
Manufacturer:Wurth Elektronik GmbH & Co. KG, Germany.
-
ManyChip's Part#:MC25873220
-
Category:Board to Board Connectors
-
Datasheet:Datasheet 3D Model
-
Description:WURTH ELEKTRONIK 61301611121 – Коннектор типа “board-to-board”, вертикальный, с просветом 2,54 мм, для 16 контактов, серии WR-PHD, с отверстием для соединения.
-
Stock Locations:
-
Availability:881 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.43
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Модель 61301611121 представляет собой черный коннектор типа “pin header” с одной линией соединений и 16 контактами, просветом 2,54 мм. Коннектор серии WR-PHD имеет контакты из золотистого медиевого сплава и изолятор из PBT. Подходит для соединения с моделями 609002115121, 610xxx11921, 6100xx11921, 613xxx11821, 613xxx143121, 6130xx11821 и 6130xx143121.
- Следующая нагрузка: 3 Ампера.
- Напряжение: 250 ВAC.
- Класс горючести по стандарту UL94V-0.
- Метод пайки: без использования свинцовых проволок.
61301611121 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 16 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Current Rating | 3 A |
| Insulation Resistance | 1 GΩ |
| Number of Rows | 1 Row |
| Number of Positions | 16 Position |
| Voltage Rating | 250 V |
| Show | |
| Color | Black |
| Contact Material | Copper |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
