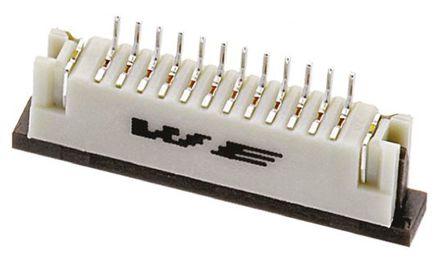

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 68611014422 is a 10-way 1-row beige surface-mount horizontal bottom ZIF Connector, 1mm pitch. This WR-FPC series connector with tin-plated phosphor bronze contacts, PPS insulator, PPS actuator. It mates with 6866xxxxx001 and 6867xxxxx001.
1A Current rating
125VAC Voltage rating
UL94V-0 Flammability rating
Don"t pull the actuator too far otherwise the stop limit (hook on actuator) may be broken, don"t keep conductor toward actuator, don"t keep FFC inclined when insertion.

Show

68611014422 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Contacts	10 Contact
Gender	Male
Contact Plating	Tin, Tin over Nickel
Current Rating	1 A
Number of Rows	1 Row
Number of Positions	10 Position
Number of Mating Cycles	25 Cycle
Voltage Rating	125 V
	Show
Housing Color	Beige
Contact Material	Phosphor Bronze
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
