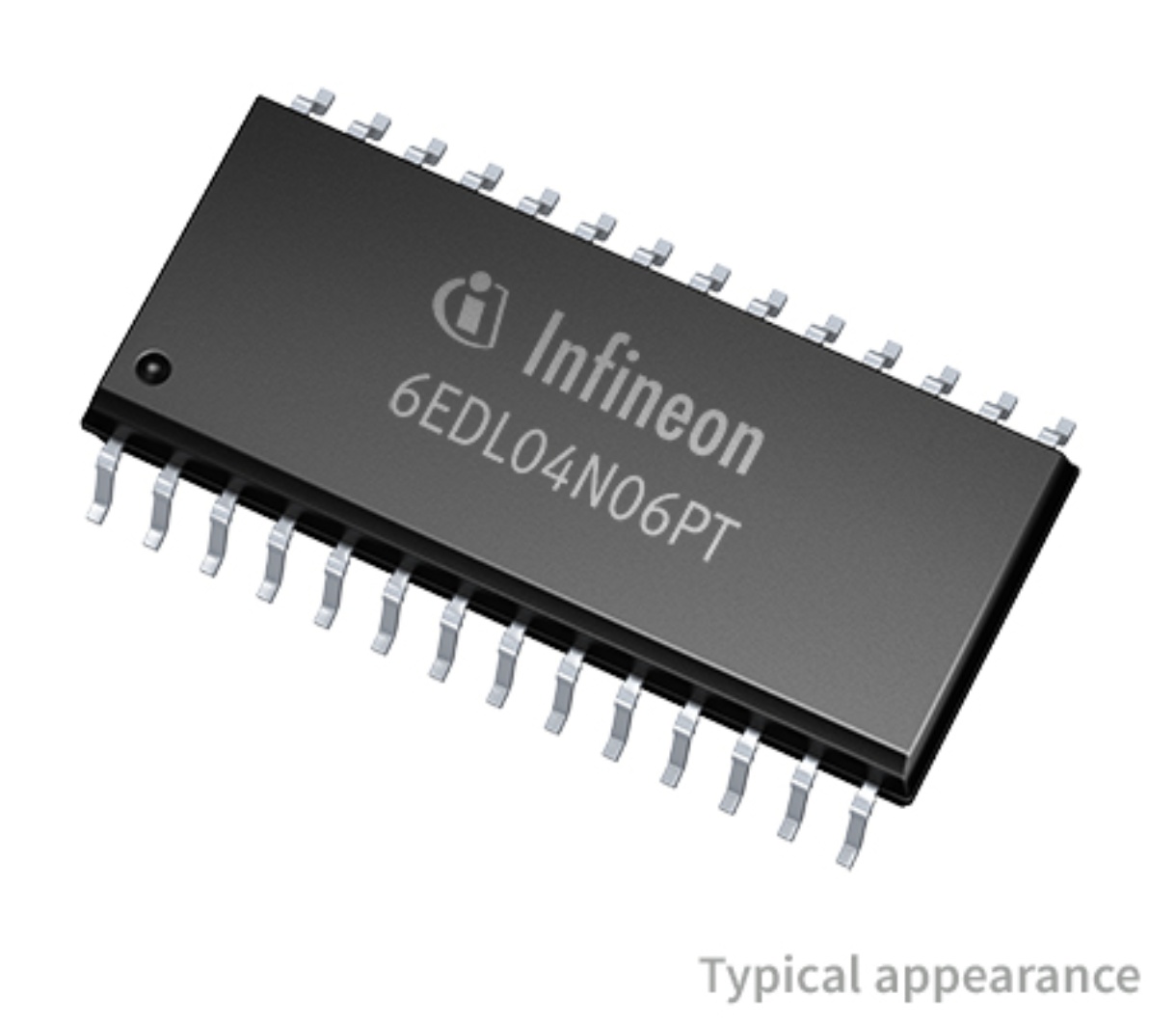

- 6EDL04N06PT - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC95185593
-
Category:FET Driver
-
Package:PG-DSO-28
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 620V 0.42A 6Out Hi/Lo Side Full Brdg Non-Inv 28Pin DSO
-
Stock Locations:
-
Availability:945 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.86
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Thin-film-SOI-technology
- Maximum blocking voltage +600V
- Separate control circuits for all six drivers
- CMOS and LSTTL compatible input (positive logic)
- Signal interlocking of every phase to prevent cross-conduction
- Detection of over current and under voltage supply
- Benefits:
- Space saving package
- Improved energy efficiency
6EDL04N06PT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | PG-DSO-28 |
| Number of Outputs | 6 Output |
| Output Current | 0.165 A |
| Fall Time (Max) | 45 ns |
| Fall Time (Max) | 100 ns |
| Operating Temperature (Max) | 95 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1300 mW |
| Show | |
| Size-Length | 18.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.65 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
