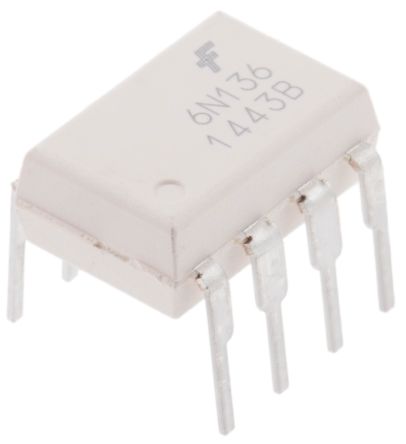

6N136M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9666033
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 6N136M Optocoupler, Transistor Output, 1Channel, DIP, 8Pins, 25mA, 5kV, 19%
Stock Locations:
Availability:
3,363 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.8

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6N136M is a 1-channel 8-pin high speed Transistor Optocoupler consists of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocoupler by reducing the base-collector capacitance of the input transistor. It is suitable for line receivers, pulse transformer replacement, output interface to CMOS-LSTTL-TTL and wide-bandwidth analogue coupling.
1Mbps High speed
890V Maximum working insulation voltage
6000V High allowable overvoltage
0 to 70°C CTR guaranteed
10kV/µs Superior CMR

Show

6N136M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.45 V
Power Dissipation	0.1 W
Isolation Voltage	5000 Vrms
Forward Current	25 mA
Output Voltage (Max)	20 V
Input Current (Min)	50 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	25 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
