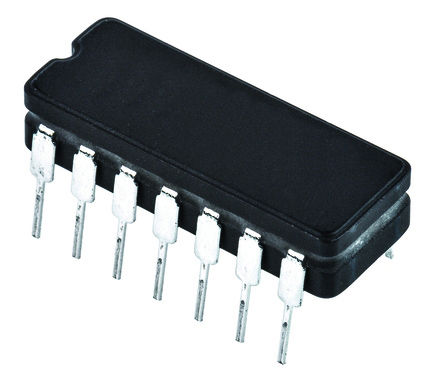

Image is for your reference only,please check specifications for details

6N140A - Broadcom
Manufacturer:
Broadcom
ManyChip's Part#:
MC49261715
Category:
Optocoupler, Optoisolator
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
BROADCOM LIMITED 6N140A Optocoupler, Darlington Output, 4Channel, DIP, 16Pins, 10mA, 1.5kV, 200%
Stock Locations:
Availability:
95 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 207.33

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6N140A is a commercial grade four channel hermetically sealed optocoupler in a 16-Pin ceramic DIP package. Gold plated leads, solder dipped leads and various lead form options are also available. See the datasheet for details.
The product is capable of operation and storage over the full military temp range and may also be purchased with full MIL-PRF-38534 Class H or K level testing, or from the appropriate DLA SMD (83024 for Class H, 5962-98002 for Class K). The 6N140A is manufactured and tested on a MIL-PRF-38534 certified line and Class H and K versions are included in the DLA Qualified Manufacturers List QML-38534 for Hybrid Microcircuits.
Each channel contains a GaAsP light emitting diode which is optically coupled to an integrated high gain photon detector. The high gain output stage features an open collector output providing both lower saturation voltage and higher signaling speed than possible with conventional photo-Darlington optocouplers. The shallow depth and small junctions offered by the IC process provides better radiation immunity than conventional photo transistor optocouplers.
The supply voltage can be operated as low as 2.0 V without adversely affecting the parametric performance. These devices have a 300% minimum CTR at an input current of only 0.5 mA making them ideal for use in low input current applications such as MOS, CMOS, low power logic interfaces or line receivers. Compatibility with high voltage CMOS logic systems is assured by specifying Icch and Ioh at 18 Volts.
Package styles available for this die set with one, two or for channels are 8 and 16-Pin DIP through hole, 16-Pin surface mount DIP flat pack, and 20 pad leadless ceramic chip carrier. Most devices may be purchased with a variety of lead forms and plating options. See datasheet for details.
Because the same electrical die (emitters and detectors) are used for each channel of each device listed in the datasheet, absolute maximum ratings, recommended operating conditions, electrical specifications, and performance characteristics shown in the datasheet figures are virtually identical for all parts. Occasional exceptions exist due to package variations and limitations and are as noted. Additionally, the same package assembly processes and materials are used in all devices. These similarities give justification for the use of data obtained from one part to represent other parts performance for reliability and certain limited radiation test results.
### Features
Commercial grade, four channel, 16-Pin DIP
Performance guaranteed from -55ºC to 125ºC
High radiation immunity
Reliability data
MIL-PRF-38534 Class H and Class K available
Five hermetically sealed package configurations
One and two channel devices (different package)
Low input current requirement: 0.5 mA
High current transfer ratio: 1500% typical @ IF = 0.5 mA
Low output saturation voltage: 0.11 V typical
1500 Vdc withstand test voltage

Show

6N140A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Number of Channels	4 Channel
Number of Positions	16 Position
Forward Voltage	1.4 V
Power Dissipation	200/chmW
Isolation Voltage	1.5 kV
Forward Current	10 mA
Output Voltage (Max)	20 V
Input Current (Min)	10 mA
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
