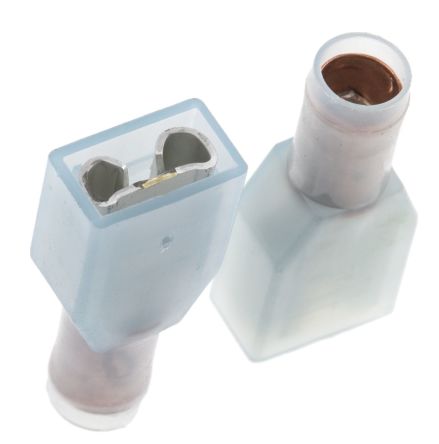

Image is for your reference only,please check specifications for details
- 735160 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC11497733
-
Category:Terminal
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:AMP - TE CONNECTIVITY 735160 Quick Disconnect Terminal, PIDG FASTON Series, 13AWG, 12AWG, 3mm², Female Quick Disconnect, Blue
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 735160 is a Crimp Terminal with blue nylon (polyamide) insulator, tin-plated brass contact. Straight orientation, 2.5 to 3mm² wire cross-section, blue barrel, insulation support style, quick disconnect type, 6.35 x 0.81mm tab size and 13 to 12AWG wire size. This crimp terminal is suitable for wires/cables.
- 300V Maximum voltage rating
- F-crimp type
- Dimple mating retention
- Insulation support style
- Normal insertion force
735160 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Quick Connect |
| Case/Package | - |
| Gender | Female |
| Wire Gauge | 12AWG ~ 13AWG |
| Contact Plating | Tin |
| Voltage Rating (AC) | 300 V |
| Orientation | Straight |
| Voltage Rating (Max) | 300 VAC |
| Show | |
| Size-Length | 21.5 mm |
| Size-Width | 6.3 mm |
| Size-Thickness | 0.8 mm |
| Color | Blue |
| Contact Material | Brass |
| Material | Brass |
| Insulation Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
