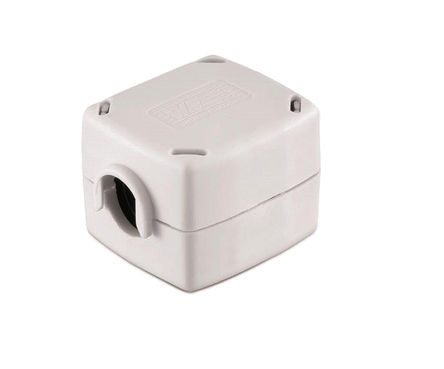

Image is for your reference only,please check specifications for details

74271112S - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC5733067
Category:
Ferrite
Package:
Split Core
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 74271112S Ferrite Core, Split, 321Ω, 1MHz, 1GHz, 6mm
Stock Locations:
Availability:
1,210 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.85

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STAR-TEC series from Wurth Elektronik are round cable snap ferrites with safety key technology. The security lock guarantees electromagnetic compatibility so only authorized persons can unlock snap ferrite with the STAR-TEC key. The STAR-TEC series ferrites are used for EMI suppression in frequency area from 1MHz to 1GHz. The innovative sleek design without any sharp edges makes STAR-TEC blend in on the cable. The ferrite core is made of NiZn material which provides broadband suppression from 30MHz to 1.5GHz.
Available in black and grey colours
Impedance at 100MHz ranges from 182ohm to 321ohm
Prefixing cable system facilitates the cable assembling process
UL94-V0 approved PA6 plastic case
Operating temperature range -25°C to 105°C
Patented case design prevents air gaps for a perfect EMI suppression
Fastening for round cables with diameter 3.5mm to 12.5mm
Key sold separately

Show

74271112S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Split Core
	Show
Size-Length	40.50 mm
Size-Width	23.7 mm
Size-Height	18.2 mm
Color	Black
Housing Material	Nylon 6
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
