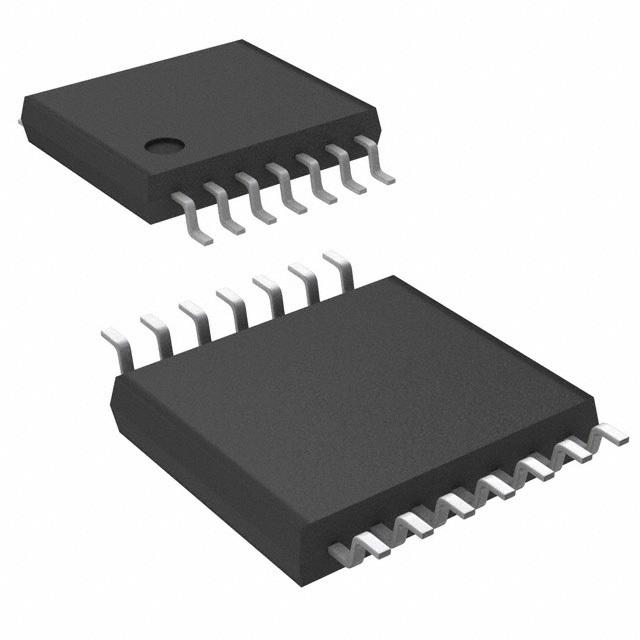

SN74HC4066PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC550034
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74HC4066PWR Analog Switch, Quad Channel, SPST, 4Channels, 85Ω, 2V to 6V, TSSOP, 14Pins
Stock Locations:
Availability:
9,698 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74HC4066PWR is a single-pole single-throw (SPST) quadruple bilateral Analog Switch designed to handle both analog and digital signals. Each switch permits signals with amplitudes of up to 6V (peak) to be transmitted in either direction. Each switch section has its own enable input control (C). A high-level voltage applied to C turns on the associated switch section. Applications include signal gating, chopping, modulation or demodulation (modem) and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
High degree of linearity
High on-off output voltage ratio Low crosstalk between switches
individual switch controls
Low crosstalk between switches
Green product and no Sb/Br

Show

SN74HC4066PWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	2.00V ~ 6.00V
Number of Outputs	4 Output
Contacts Type	SPST
Supply Current	2 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Propagation Delay Max (tpd)	15.0 ns
Polarity	Non-Inverting
Voltage Nodes	6.00 V, 5.00 V, 2.00 V
Bandwidth	30.0 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	30 MHz
Supply Voltage	2V ~ 6V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
