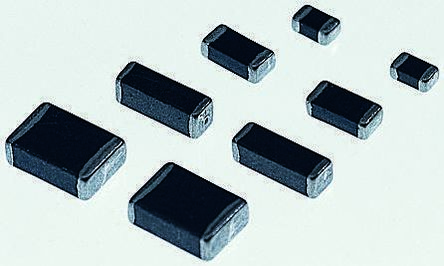

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The WE-CBF series from Wurth Elektronik are surface mount EMI suppression ferrite beads. These ferrite beads offer excellent anti EMI properties and low DC resistance. WE-CBF ferrite beads can be soldered directly on printed circuit board.
EIA 0402, 0603, 0805, 1206, 1210, 1806, 1812 chip sizes available
Reliable Ni-Sn electrodes
Impedance at 100MHz ranges from 5ohm to 27Kohm
Rated current rating from 50mA to 6A
DC Resistance ranges from 8mohm to 1.5ohm
Operating temperature range -55°C to 125°C
Suitable for reflow soldering process

Show

742792114 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	3216
Case/Package	1206
Current Rating	3 A
Capacitance Tolerance	±25 %
Inductance	12 nh
Resistance	25.0 mΩ
Test Frequency	100 MHz
DC Resistance (DCR)	≤25 mΩ
Current Rating (Max)	3 A
Current Rating (DC)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.025 Ω
	Show
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	1.1 mm
Weight	0.0004481492912 kg
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
