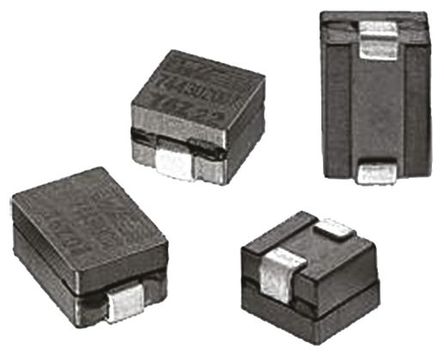

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

744309033 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	14mm x 13mm x 9mm
Current Rating	47.5 A
Capacitance Tolerance	±20 %
Inductance	330 nH
Self Resonant Frequency	158 MHz
Part Family	WE-HCM
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	0.165 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±20 %
	Show
Size-Length	14 mm
Size-Width	13 mm
Size-Height	9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
