Description

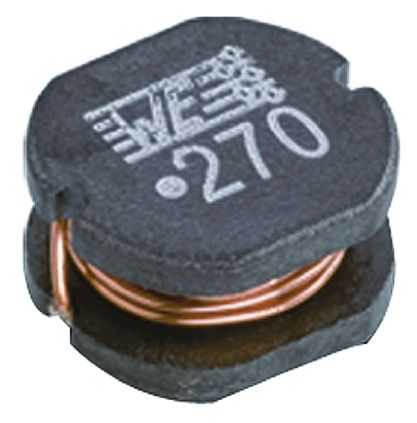

The 74477310 is a surface mount unshielded Power Inductor with open size. This inductor supports 30MHz typical self-resonant frequency and it is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions. Perfectly suitable for switching regulators with extremely high efficiency.
3°C/s Maximum ramp-up rate
6°C/s Maximum ramp-down rate
Reflow solder profile (recommended)
Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body, pins or termination.

Show

74477310 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Nonstandard
Current Rating	1.45 A
Capacitance Tolerance	±20 %
Inductance	10 µH
Self Resonant Frequency	37 MHz
Part Family	WE-PD2
Resistance	118 mΩ
Resonant Frequency	30 MHz
Inductance Tolerance	±20 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤182 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.182 Ω
	Show
Size-Length	4.5 mm
Size-Width	4 mm
Size-Height	3.2 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
