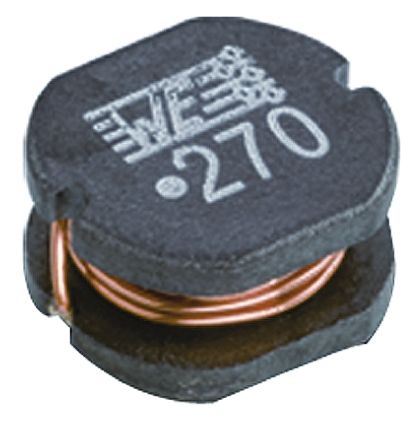

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4.7µH Unshielded Wirewound Inductor 3A 71mOhm Max Nonstandard
744774047 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 5.8mm x 5.2mm x 4.5mm |
| Current Rating | 3 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 4.7 µH |
| Self Resonant Frequency | 33 MHz |
| Part Family | WE-PD2 |
| Resistance | 56.0 mΩ |
| Resonant Frequency | 33 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 10 kHz |
| DC Resistance (DCR) | ≤71 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.071 Ω |
| Show | |
| Size-Length | 5.8 mm |
| Size-Width | 5.2 mm |
| Size-Height | 4.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
