Description

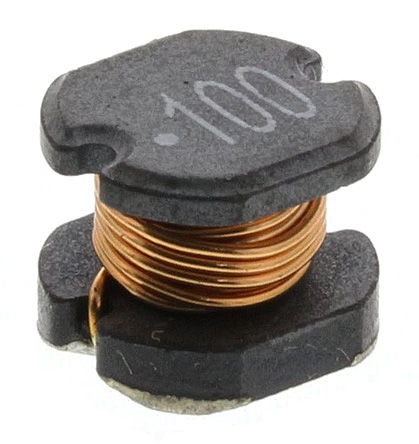

- The 74477410 is a surface mount unshielded Power Inductor with open size. This inductor supports 26MHz typical self-resonant frequency and it is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions. Perfectly suitable for switching regulators with extremely high efficiency.
- 3°C/s Maximum ramp-up rate
- 6°C/s Maximum ramp-down rate
- Reflow solder profile (recommended)
- Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body, pins or termination.
74477410 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 5.8mm x 5.2mm x 4.5mm |
| Current Rating | 2.2 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 26 MHz |
| Part Family | WE-PD2 |
| Resistance | 78.0 mΩ |
| Resonant Frequency | 26.0 MHz |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤100 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.1 Ω |
| Show | |
| Size-Length | 5.8 mm |
| Size-Width | 5.2 mm |
| Size-Height | 4.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
