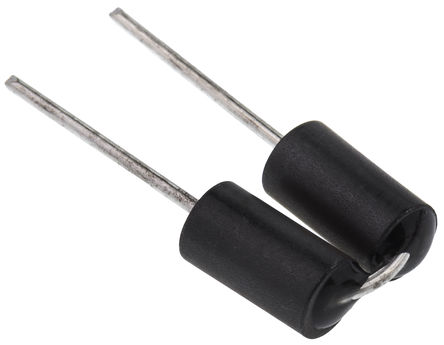

Image is for your reference only,please check specifications for details

BL02RN2R1M2B - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC4170440
Category:
Ferrite
Package:
0.134" Dia (3.40mm)
Datasheet:
Datasheet 3D Model
Description:
BL Series Ø 3.6 x 7.5mm 7A Radial Straight Type Ferrite Bead Inductor
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BL02 series from Murata are radial leaded EMIFIL ferrite beads inductor to produce a high frequency loss for suppression of noise. These inductor type EMI suppression filters are designed to operate from several MHz to several GHz. They are widely used as general purpose noise suppression components to cope with relatively minor noise issues. EMIFIL Inductor type filters behave as inductors with small inductance at low frequencies, while they produce a resistance dominated impedance at high frequencies. When serially inserted into a noise transmission path, the resistance component absorbs and prevents the transmission of noise.
3.4mm beads diameter
Rated current of 7A or 6A
Operating temperature range -40°C to +85°C
High frequency loss for suppression of noise

Show

BL02RN2R1M2B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	0.134" Dia (3.40mm)
Current Rating	7 A
Number of Circuits	1 Circuit
Resistance	50.0 Ω
Shielding	No
DC Resistance (DCR)	0.02 Ω
Current Rating (Max)	7 A
Current Rating (DC)	7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	20 mΩ
	Show
Size-Length	9.0 mm
Size-Width	3.4 mm
Size-Height	7.5 mm
Material	Ferrite
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
