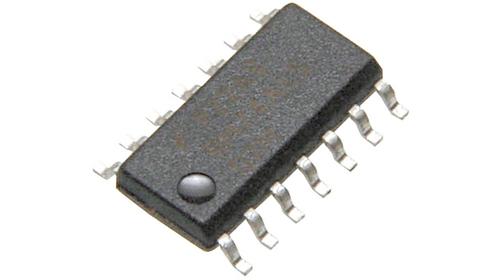

- 74ABT125D - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC151383945
-
Category:Logic Controller, Logic IC
-
Package:SOIC
-
Datasheet:Datasheet 3D Model
-
Description:NXP 74ABT125D Buffer / Line Driver, 74ABT125, 4.5V to 5.5V, SOIC-14
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.74
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 74ABT125D is a Quad Buffer that is ideal for driving bus lines. The device features four output enable inputs (1OE, 2OE, 3OE, 4OE) each controlling one of the 3-state outputs. The 74ABT125 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
- Quad bus interface
- Live insertion and extraction permitted
- Power-up 3-state
- Inputs are disabled during 3-state mode
- Latch-up protection exceeds 500mA per JESD78 class II level A
- Output capability - HIGH -32mA and LOW 64mA
74ABT125D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Outputs | 4 Output |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Number of Bits | 4 Bit |
| Quiescent Current | 12.0 mA |
| Number of Gates | 4 Gate |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
