Image is for your reference only,please check specifications for details
- DLP0NSN900HL2L - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC1172696
-
Category:Inductor Choke
-
Package:0806
-
Datasheet:Datasheet 3D Model
-
Description:Ind Common Mode Choke Thin Film 90Ω 20% 100MHz 100mA 03025 Embossed T/R
-
Stock Locations:
-
Availability:330 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.06
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 100mA DCR 3.75Ohm
DLP0NSN900HL2L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 0806 |
| Voltage Rating (DC) | 5 V |
| Capacitance Tolerance | ±20 % |
| Self Resonant Frequency | 100 MHz |
| Resistance | 90 Ω |
| Resonant Frequency | 100 MHz |
| Impedance | 90.0 Ω |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | 3 Ω |
| Current Rating (Max) | 100 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 5 VDC |
| Resistance (DC Max) | 3.75 Ω |
| Show | |

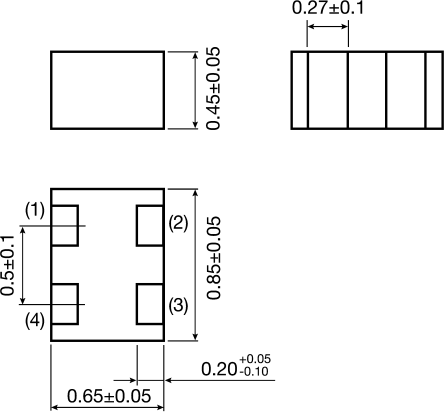

| Size-Length | 0.85 mm |
| Size-Width | 0.65 mm |
| Size-Height | 0.45 mm |
| Weight | 0.001 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
| HK STC License | NLR |
