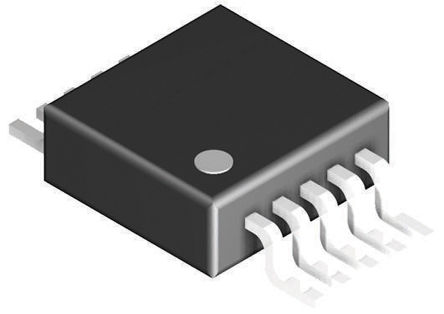

Image is for your reference only,please check specifications for details
- TS3USB30EDGSR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC279440
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:VSSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:Analog Multiplexer / Demultiplexer, 1:2, 2Circuits, 10Ω, 1µA, 3V to 4.3V, VSSOP-10
-
Stock Locations:
-
Availability:509 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.24
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3USB30EDGSR is a 1:2 Mux/Demux Switch with single Enable and ESD protection specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (900MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from an USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation and is compatible with various standards such as high-speed USB 2.0 (480Mbps).
- Green product and no Sb/Br
- D+/D- pins tolerate up to 5.25V
- 1.8V Compatible control-pin inputs
- IOFF supports partial power-down-mode operation
- 0.35R Typical ΔRON
- 7.5pF Typical Cio(on)
- Low power consumption (1µA maximum)
- 900MHz Typical bandwidth (-3dB)
- Latch-up performance exceeds 100mA per JESD 78, class II
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TS3USB30EDGSR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSSOP-10 |
| Supply Voltage (DC) | 3.00V ~ 4.30V |
| Number of Outputs | 4 Output |
| Supply Current | 1 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 10 Position |
| Bandwidth | 900 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 900 MHz |
| Supply Voltage | 3V ~ 4.3V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
