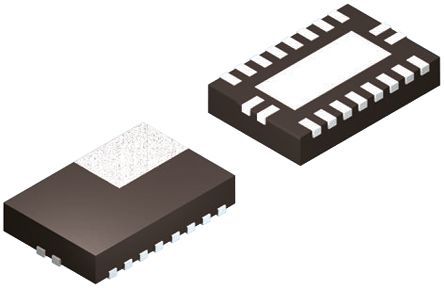

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

74CBTLV3245BQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQCCN
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	0.95 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17
