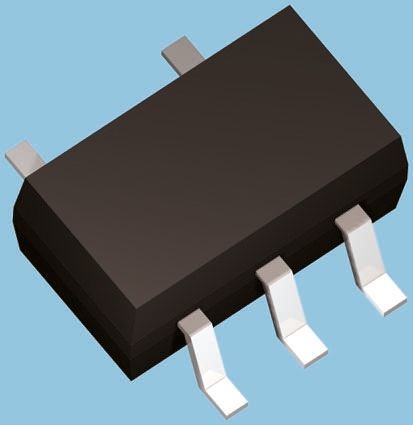

Image is for your reference only,please check specifications for details

74HC1G66GW - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC77348470
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOT-353
Datasheet:
Datasheet 3D Model
Description:
NXP 74HC1G66GW Analogue Switch, Single Channel, SPST, 1Channels, 105Ω, 2V to 10V, SOT-353, 5Pins
Stock Locations:
Availability:
2,357 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.53

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC1G66GW is a single-pole single-throw (SPST) high-speed Si-gate CMOS Analog Switch has two input/output pins (Y and Z) and an active HIGH enable input pin (E). When pin E is LOW, the analog switch is turned off.
Very low ON resistance
High noise immunity
Low power dissipation

Show

74HC1G66GW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-353
Supply Voltage (DC)	5.00 V
Output Current	25 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Drain to Source Resistance (on) (Rds)	142 Ω
Power Dissipation	100 mW
Number of Gates	1 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Supply Voltage	2V ~ 10V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	2.25 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
