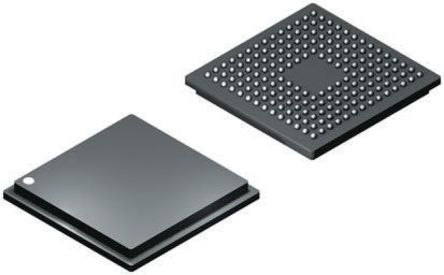

Image is for your reference only,please check specifications for details
- TUSB1310AZAY - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6014433
-
Category:Interface IC, Interface Controller
-
Package:LFBGA-175
-
Datasheet:Datasheet 3D Model
-
Description:USB Interface, Universal Transceiver, USB 3.0, 1.045V, 3.63V, NFBGA, 175Pins
-
Stock Locations:
-
Availability:251 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 211.03
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Introduction
- The TUSB1310A is a single port, 5.0-Gbps USB 3.0 physical layer transceiver operating off of a single reference clock provided by either a crystal or an external reference clock. The reference clock frequencies are selectable from 20, 25, 30, and 40 MHz. The TUSB1310A provides the clock to the USB controller. The use of a single reference clock allows the TUSB1310A to provide a cost effective USB 3.0 solution with few external components and a low implementation cost.
- Features
- • Universal Serial Bus (USB)
- – Single Port 5.0-Gbps USB 3.0 Physical Layer Transceiver
- • One 5.0-Gbps SuperSpeed Connection
- • One 480-Mbps HS/FS/LS Connection
- – Fully Compliant with USB 3.0 Specification, Revision 1.0
- – Supports 3+ Meters USB 3.0 Cable Length
- – Fully Adaptive Equalizer to Optimize Receiver Sensitivity
- – PIPE to Link Layer Controller
- • Supports 16-Bit SDR Mode at 250 MHz
- • Compliant With PHY Interface for the USB Architectures (PIPE), Version 3.0
- – ULPI to Link Layer Controller
- • Supports 8-Bit SDR Mode at 60 MHz
- • Supports Synchronous Mode and Low Power Mode
- • Compliant with UTMI+ Low Pin Interface (ULPI) Specification, Revision 1.1
- • General Features
- – IEEE 1149.1 JTAG Support
- – IEEE 1149.6 JTAG support for the SuperSpeed Port
- – Operates on a Single Reference Clock of 40 MHz
- – 3.3-, 1.8-, and 1.1-V Supply Voltages
- – 1.8-V PIPE and ULPI I/O
- – Available in Lead-Free 175-Ball 12- x 12-nF BGA Package (175ZAY)
- Applications
- • Surveillance Cameras
- • Multimedia Handset
- • Smartphone
- • Digital Still Camera
- • Portable Media Player
- • Personal Navigation Device
- • Audio Dock
- • Video IP Phone
- • Wireless IP Phone
- • Software Defined Radio
TUSB1310AZAY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 175 Pin |
| Case/Package | LFBGA-175 |
| Supply Voltage (DC) | 1.04V (min) |
| Number of Positions | 175 Position |
| Data Rate | 5.00 Gbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.1 V, 1.8 V, 3.3 V |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 1.045 V |
| Show | |
| Size-Length | 12.1 mm |
| Size-Width | 12.1 mm |
| Size-Height | 0.96 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
