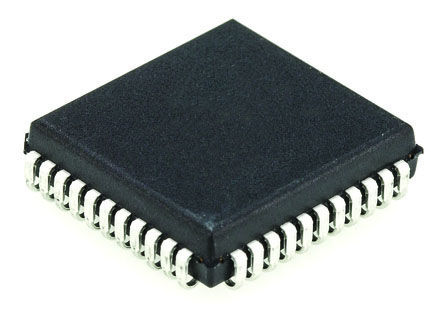

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TL16C450FN is an Universal Asynchronous Receiver/Transmitter (UART) without FIFO. It is CMOS version of an asynchronous communications element (ACE). It typically functions in a microcomputer system as a serial input/output interface. It performs serial-to-parallel conversion on data received from a peripheral device or modem and parallel-to-serial conversion on data received from its CPU. The CPU can read and report on the status of the ACE at any point in the ACE"s operation. Reported status information includes the type of transfer operation in progress, the status of the operation and any error conditions encountered. It includes a programmable, on-board, baud rate generator. This generator is capable of dividing a reference clock input by divisors from 1 to (2¹⁶ -1) and producing a 16x clock for driving the internal transmitter logic. Provisions are included to use this 16x clock to drive the receiver logic.
- Full double buffering eliminates the need for precise synchronization
- Independent Receiver Clock Input
- Transmit, receive, line status and data set interrupts independently controlled
- Even, odd or no-parity bit generation and detection
- False start bit detection
- Complete status reporting capabilities
- 3-state TTL drive capabilities for bidirectional data bus and control bus
- Line break detection and generation
- Loopback controls for communications link fault isolation
- Break, parity, overrun and framing-error simulation
- Fully prioritized interrupt system controls
- Modem control functions (CTS\, RTS\, DSR\, DTR\, RI\ and DCD\\)
- Easily interfaces to most popular microprocessors
- Faster plug-in replacement for national semiconductor NS16C450
- Green product and no Sb/Br
TL16C450FN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | PLCC-44 |
| Supply Voltage (DC) | 4.75V (min) |
| Operating Voltage | 5.00 V |
| Supply Current | 10 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 44 Position |
| Power Dissipation | 1100 mW |
| Data Rate | 256 kbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1100 mW |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 16.59 mm |
| Size-Width | 16.59 mm |
| Size-Height | 4.06 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
