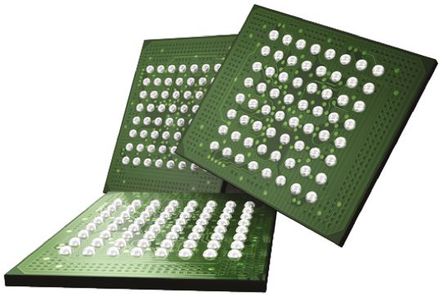

Image is for your reference only,please check specifications for details

PC28F00AG18FE - Micron
Manufacturer:
Micron
ManyChip's Part#:
MC131280291
Category:
Flash Memory, Flash
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
NOR Flash Parallel/Serial 1.8V 1Gbit 64M x 16Bit 96ns 64Pin BGA Tray
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
Micron"s 65nm device is the latest generation of StrataFlash® wireless memory featuring flexible, multiple-partition, dual-operation architecture. The device provides high performance, asynchronous read mode and synchronous-burst read mode using 1.8V low-voltage, multilevel cell (MLC) technology.
Features
• High-Performance Read, Program and Erase
– 96 ns initial read access
– 108 MHz with zero wait-state synchronous burst reads: 7 ns clock-to-data output
– 133 MHz with zero wait-state synchronous burst reads: 5.5 ns clock-to-data output
– 8-, 16-, and continuous-word synchronous-burst Reads
– Programmable WAIT configuration
– Customer-configurable output driver impedance
– Buffered Programming: 2.0 μs/Word (typ), 512-Mbit 65 nm
– Block Erase: 0.9 s per block (typ)
– 20 μs (typ) program/erase suspend
• Architecture
– 16-bit wide data bus
– Multi-Level Cell Technology
– Symmetrically-Blocked Array Architecture
– 256-Kbyte Erase Blocks
– 1-Gbit device: Eight 128-Mbit partitions
– 512-Mbit device: Eight 64-Mbit partitions
– 256-Mbit device: Eight 32-Mbit partitions
– 128-Mbit device: Eight 16-Mbit partitions
– Read-While-Program and Read-While-Erase
– Status Register for partition/device status
– Blank Check feature
• Quality and Reliability
– Expanded temperature: –30 °C to +85 °C
– Minimum 100,000 erase cycles per block
– 65nm Process Technology
• Power
– Core voltage: 1.7 V - 2.0 V
– I/O voltage: 1.7 V - 2.0 V
– Standby current: 60 μA (typ) for 512-Mbit, 65 nm
– Deep Power-Down mode: 2 μA (typ)
– Automatic Power Savings mode
– 16-word synchronous-burst read current: 23 mA (typ) @ 108 MHz; 24 mA (typ) @ 133 MHz
• Software
– Micron® Flash data integrator (FDI) optimized
– Basic command set (BCS) and extended command set (ECS) compatible
– Common Flash interface (CFI) capable
• Security
– One-time programmable (OTP) space
64 unique factory device identifier bits
2112 user-programmable OTP bits
– Absolute write protection: VPP = GND
– Power-transition erase/program lockout
– Individual zero latency block locking
– Individual block lock-down
• Density and packaging
– 128Mb, 256Mb, 512Mbit, and 1-Gbit
– Address-data multiplexed and non-multiplexed interfaces
– 64-Ball Easy BGA

Show

PC28F00AG18FE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	BGA-64
Supply Voltage (DC)	1.70V (min)
Clock Speed	133 MHz
Number of Bits	16 Bit
Access Time	96 ns
Access Time(Max)	96 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Supply Voltage	1.7V ~ 2V
Supply Voltage (Max)	2 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	10 mm
Size-Width	8 mm
Size-Height	1.2 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
