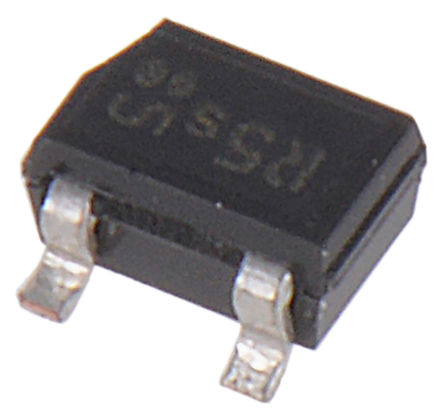

Image is for your reference only,please check specifications for details

BFP650 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC131266096
Category:
BJT Transistor, BJT
Package:
SOT-343-4
Datasheet:
Datasheet 3D Model
Description:
Digital Transistors \\- NPN SiGe RF Transistor, high power amplifiers, low noise RF transistor in SOT343 Package, 4V, 150mA
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Highly linear low noise driver amplifier for all RF frontends up to 4.5 GHz
Output compression point OP1dB = 17 dBm at 70 mA, 3V, 2.4 GHz, 50Ω system
Output 3rd order intermodulation point OIP3 = 30 dBm at 70 mA, 3 V, 2.4 GHz, 50 Ω system
Maximum available gain Gma = 17.5 dB at 70 mA, 3V, 2.4 GHz
Minimum noise figure NFmin = 1 dB at 30 mA, 3V, 2.4 GHz
Based on Infineon´s reliable, high volume SiGe:C wafer technology
Easy to use Pb-free (RoHS compliant) standard package with visible leads
Qualification report according to AEC-Q101 available

Show

BFP650 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-343-4
Power Rating	0.5 W
Breakdown Voltage (Collector to Emitter)	4.5 V
Gain	10.5dB ~ 21.5dB
hFE Min	110 @80mA, 3V
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
