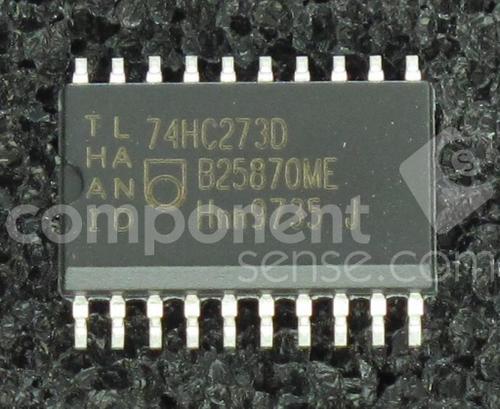

74HC273D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC71241039
Category:
Logic Control, Logic Gate IC
Package:
SOIC-163
Datasheet:
Datasheet 3D Model
Description:
NXP 74HC273D Flip-Flop, with Reset, Non Inverted, Positive Edge, 74HC273, D, 13ns, 66MHz, 5.2mA, SOIC
Stock Locations:
Availability:
30 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC273D is an octal positive-edge triggered D-type Flip-flop features clock and master reset (MR\\) inputs. The outputs Qn will assume the state of their corresponding Dn inputs that meet the set-up and hold time requirements on the low-to-high clock transition. A low on MR\ forces the outputs low independently of clock and data inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Common clock and master reset
CMOS Input levels
Complies with JEDEC standard No. 7A

Show

74HC273D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-163
Frequency	66 MHz
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Output Current	5.2 mA
Number of Circuits	8 Circuit
Number of Positions	20 Position
Number of Bits	8 Bit
Polarity	Non-Inverting
Number of Gates	8 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
