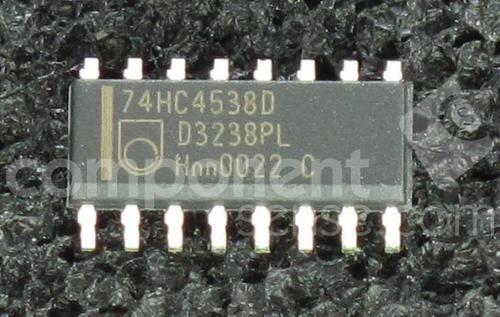

Image is for your reference only,please check specifications for details

74HC4538D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC69988031
Category:
Flip Flop IC
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:
NXP 74HC4538D Monostable Multivibrator, 74HC4538, 24ns, 5.2mA, 2V to 6V, SOIC-16
Stock Locations:
Availability:
2,202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC4538D is a dual retriggerable-resettable monostable multivibrator has two trigger/retrigger inputs (nA\ and nB), a direct reset input (nCD\\), two complementary outputs (nQ and nQ\\) and two pins (nREXT/CEXT and nCEXT) for connecting the external timing components CEXT and REXT. Typical pulse width variation over temperature range is ±0.2%. The device may be triggered by either the positive or the negative edges of the input pulse. The duration and accuracy of the output pulse are determined by the external timing components CEXT and REXT. The output pulse width (T) is equal to 0.7 x REXT x CEXT. The linear design techniques guarantee precise control of the output pulse width. A low level at nCD\ terminates the output pulse immediately. Schmitt-trigger action in the trigger inputs makes the circuit highly tolerant to slower rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Tolerant of slow trigger rise and fall times
Separate reset inputs
Triggering from falling or rising edge
CMOS Input level
Complies with JEDEC standard No. 7A

Show

74HC4538D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Digital Logic Level	CMOS
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Output Current	5.2 mA
Number of Circuits	2 Circuit
Number of Positions	16 Position
Number of Gates	2 Gate
Rise Time	6.00 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
