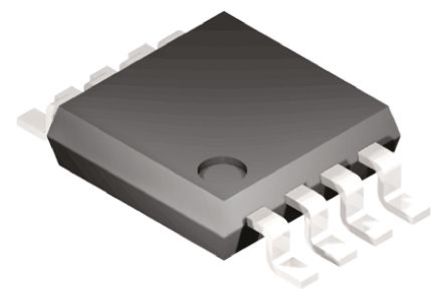

Image is for your reference only,please check specifications for details
- 82401646 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC100605100
-
Category:TVS Diode
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:WURTH ELEKTRONIK 82401646 TVS Diode, 82401 Series, Bidirectional, 5V, MSOP, 8Pins
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 13V (Typ) Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount 8-MSOP
82401646 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Operating Voltage | 5 V |
| Breakdown Voltage | 6 V |
| Clamping Voltage | 13 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 6 V |
| Min Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.875 mm |
| Operating Temperature | -55℃ ~ 85℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
