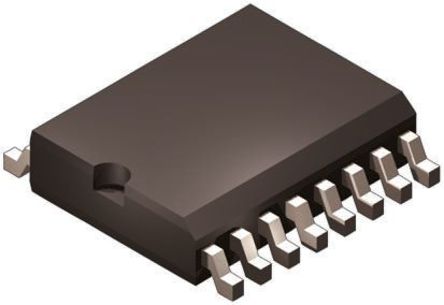

Image is for your reference only,please check specifications for details

INA101KU - TI
Manufacturer:
TI
ManyChip's Part#:
MC38574433
Category:
Instrumentation Amplifier IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA101KU Instrument Amplifier, 3 Amplifier, 250µV, 0.4V/µs, 25kHz, ± 5V to ± 20V, SOIC
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA101KU is a high accuracy Instrumentation Amplifier designed for low-level signal amplification and general purpose data acquisition. Three precision op-amp and laser-trimmed metal film resistors are integrated on a single monolithic integrated circuit.
0.25µV/°C Maximum low drift
0.002% Low nonlinearity
3nV/√Hz Low noise
Green product and no Sb/Br

Show

INA101KU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	15.0 V
Supply Current	6.7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	0.6 W
Common Mode Rejection Ratio	105 dB
Quiescent Current	6.70 mA
Bandwidth	25 kHz
Slew Rate	400 mV/μs
Gain	1.00 kdB
Input Offset Voltage	250 µV
Input Bias Current	15 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	300 kHz
Gain Bandwidth	25 kHz
Power Dissipation (Max)	600 mW
Supply Voltage (Max)	30V ~ 50V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
