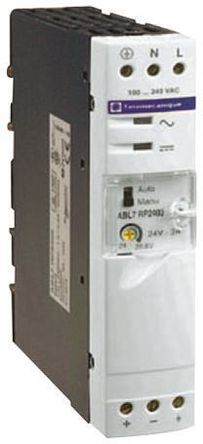

Image is for your reference only,please check specifications for details
- ABL7RP4803 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC125053360
-
Category:AC to DC Converter, AC/DC Converter
-
Datasheet:Datasheet 3D Model
-
Description:Power Supply; AC-DC; 48V; 3A; 85-264Vin; Enclosed; DIN Rail; Industrial; 144W; ABL Series
-
Stock Locations:
-
Availability:4 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 286.91
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The new generation of wide operating range universal power supplies integrates a large number of new functions and offers even more user services with ingenuity by means of function modules.
- Designed for simple machines and applications, modular and optimum power supplies are primarily appreciated for their extreme compactness.
- Applications:
- Industry and building: simple machines, conveying, process, automobile sector, etc.
- Tertiary: garage doors, etc.
- Modular and optimum power supplies for 100-240 V single-phase networks
- * Output voltage: 5, 12, 24, 48 V -7 W-145 W
- * Highly compact size
- * Wide voltage range
- * Fixing by screw or on omega rail
- Universal power supplies, for networks single/3-phase 100-500 V
- * Output voltage: 24 V and 5 to 15 V by converter modules 48 V/72 W-960 W
- * Integrated energy reserve
- * 6 product references from 3 A to 40 A
- * Fixing on omega rail
- * Advanced diagnostics by LED and relay contact
- * Integrated anti-harmonics filter
- * Function modules to respond to problems of network cuts, 24 VDC circuit overloads and availability
ABL7RP4803 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Power Rating | 144 W |
| Number of Outputs | 1 Output |
| Output Voltage | 48 VDC |
| Output Current | 3 A |
| Output Power | 144 W |
| Input Voltage (Max) | 264 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (AC Max) | 240 v |
| Input Voltage (AC Min) | 100 v |
| Output Voltage (Max) | 48 VDC |
| Output Voltage (Min) | 48 VDC |
| Output Current (Max) | 3 A |
| Input Power (Max) | 144 W |
| Input Voltage | 240 VAC |
| Show | |
| Size-Length | 120 mm |
| Size-Width | 54 mm |
| Size-Height | 120 mm |
| Weight | 1 kg |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
