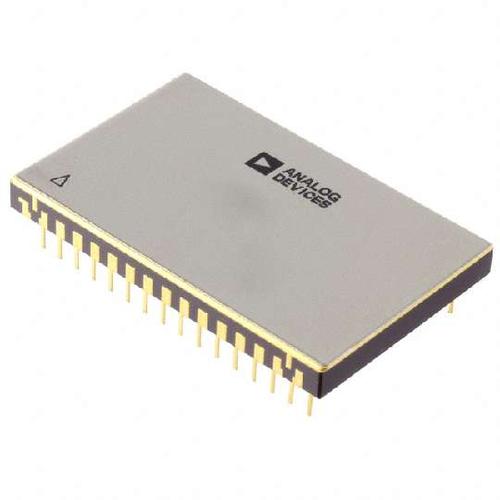

Image is for your reference only,please check specifications for details

AD1139J - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC8499608
Category:
Digital to Analog, DAC IC
Package:
DIP-32
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD1139J Digital to Analog Converter, 18Bit, Parallel, 4.75V to 5.25V, ± 14.25V to ± 15.75V, DIP, 32Pins
Stock Locations:
Availability:
291 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2414.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to Analog Devices and their AD1139J DAC converter, you"ll easily be able to convert computerized digital information and translate it into perceptible analog data. This device"s digital interface is parallel. It has a current|voltage output. This DAC has a resolution of 18bit. Its typical dual supply voltage is ±15/5 V, with a minimum of ±14.25/4.75 V and maximum of ±15.75/5.25 V. This DAC has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses dual power supplies.

Show

AD1139J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	32 Pin
Case/Package	DIP-32
Supply Voltage (DC)	5.00V (max)
Number of Outputs	3 Output
Supply Current	-30.0 mA
Number of Channels	1 Channel
Number of Bits	18 Bit
Resolution (Bits)	18.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Number of DACs	1 DAC
	Show
Size-Height	5.08 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
