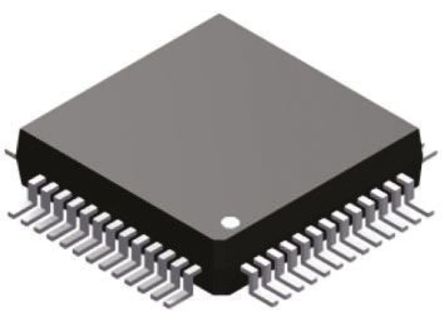

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Interface 24 b Serial 52-MQFP (10x10)
AD1836AASZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 52 Pin |
| Case/Package | QFP-52 |
| Number of Bits | 24 Bit |
| Sample Rate | 96 KSPS |
| Resolution (Bits) | 24.0 Bit |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 4 Channel |
| Number of Output Channels | 6 Channel |
| Number of DACs | 3 DAC |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 2 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
