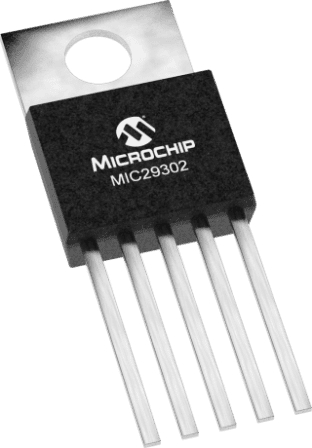

MIC29302WT - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC1537695
Category:
Voltage Regulator
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC29302WT LDO Voltage Regulator, Adjustable, 2.25V to 26V input, 370mV drop., 1.25V to 25V/3A out, TO-220-5
Stock Locations:
Availability:
83 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.49

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC29302WT is a high-current, high-accuracy, low-dropout Voltage Regulator. Using Micrel"s proprietary Super βeta PNP® process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high-current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. This is fully protected against over-current faults, reversed input polarity, reversed lead insertion, over-temperature operation and positive and negative transient voltage spikes. Five-pin fixed voltage versions feature logic-level on/off control and an error flag which signals whenever the output falls out of regulation. Flagged states include low input voltage (dropout), output current limit, over-temperature shutdown and extremely high voltage spikes on the input.
High current capability
Low ground current
Accurate 1% guaranteed tolerance
Extremely fast transient response
Reverse-battery and load dump protection
Zero-current shutdown mode (5-pin versions)
Error flag signals output out-of-regulation (5-pin versions)
Fixed voltage and adjustable versions
ESD sensitive device, take proper precaution while handling the device.

Show

MIC29302WT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Number of Outputs	1 Output
Output Voltage	1.25V ~ 26V
Output Current	3 A
Number of Positions	5 Position
voltage rating	370 mV
Input Voltage (Max)	26 V
Input Voltage (Min)	2.25 V
Output Voltage (Max)	25 V
Output Voltage (Min)	1.25 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	≤26 V
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
