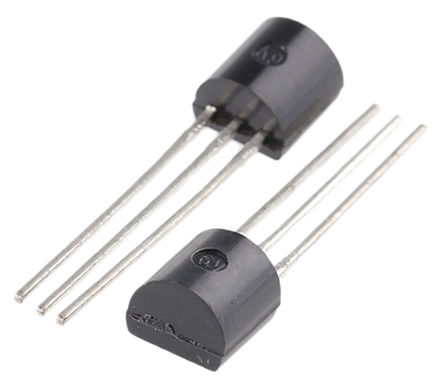

LM336Z25 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9035096
Category:
Voltage Reference
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
2.49V, 2% Programmable Shunt Regulator, 3LD, TO92, JEDEC TO-92 COMPLIANT STRAIGHT LEAD CONFIGURATION (OLD TO92AM3), 10000/BULK
Stock Locations:
Availability:
10,062 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM336Z25 is precision programmable Shunt Regulator feature easily trimmed for minimum temperature drift. The monolithic IC voltage reference operates as a low temperature coefficient 2.5V zener with 0.2R dynamic impedance. A third terminal on the LM336Z25 allows the reference voltage and temperature coefficient to be trimmed. LM336Z25 is useful as a precision 2.5V low-voltage reference for digital voltmeters, power supplies or OP-AMP circuitry. The 2.5V makes it convenient to obtain a stable reference from low-voltage supplies. Further, since the LM336Z25 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
Low temperature coefficient
4mV Typical guaranteed temperature stability
0.2R Dynamic impedance

Show

LM336Z25 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	100 mA
Capacitance Tolerance	±1 %
Output Voltage	2.49 V
Output Current	10.0 mA, 10.0 mA (max)
Number of Channels	1 Channel
Number of Positions	3 Position
Output Voltage (Max)	2.54 V
Output Voltage (Min)	2.44 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±1 %
Voltage Rating	2.5 V
	Show
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	4.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
