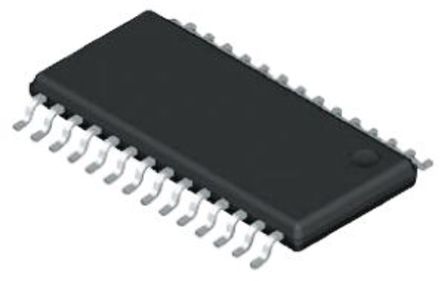

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD1853 is the first audio DAC to support the 192 kHz Sample Rate now included in the DVD-Audio specification. The AD1853 is fully compatible with sample rate from 32 kHz up to and including 192 kHz. It also achieves 120 dB Dynamic Range and Signal-to-Noise Ratio without muting and 107 dB THD+N.
- The AD1853 also features a superior Digital Filter with 115 dB stop-band-attenuation. The AD1853 uses Analog Devices" exclusive Multibit Sigma-Delta Modulator with "Perfect Differential Linearity" for reduced idle tones. It also features Analog"s patented Data Directed Scrambling to minimize sensitivity to jitter. The AD1853 also includes a click-less on-chip volume control.
- The AD1853 is targeted to the performance requirements of Hi End DVD players, DVD-Audio players, CD, A/V Processors, Mixing Consoles, Digital Audio Effects Processors.
- ### Features and Benefits
- 5 V Stereo Audio DAC System
- Accepts 16-/18-/20-/24-Bit Data
- Supports 24 Bits and 192 kHz Sample Rate
- Accepts a Wide Range of Sample Rates Including: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz and 192 kHz
- Multibit Sigma-Delta Modulator with “Perfect Differential Linearity Restoration” for Reduced Idle Tones and Noise Floor
- Data Directed Scrambling DAC—Least Sensitive to Jitter
- Differential Output for Optimum Performance
- See datasheet for additional features
AD1853JRSZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Number of Outputs | 2 Output |
| Supply Current | 75.0 mA |
| Number of Channels | 2 Channel |
| Number of Bits | 24 Bit |
| Sample Rate | 192 ksps |
| Resolution (Bits) | 24.0 Bit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 5 V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.75 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
