Description

Product Details

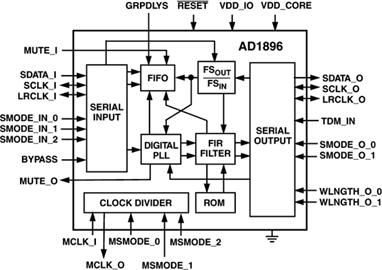

The AD1896 is a sample rate converter; it is second generation and 24-bit, high-performance, single-chip, and asynchronous. Based upon Analog Devices experience with its first asynchronous sample rate converter, the AD1890, the AD1896 offers improved performance and additional features.
This improved performance includes a minimum THD+N of 117dB for all input frequencies and sample rates, 142 dB dynamic range, 192 kHz sampling frequencies for both input and output sample rates, improved jitter rejection and 1:8 up-sampling and 7.75:1 down-sampling ratios. Additional features include more serial formats, a TDM mode to cascade multiple AD1896, a bypass mode, better interfacing to digital signal processors and a matched phase mode.
Please look at: "Why do I need a 140 dB DNR".
**Applications**
Home Theater Systems
Studio Digital Mixers
Automotive Audio Systems
DVD
Set-Top Boxes
Digital Audio Effects Processors
Studio-to-Transmitter Links
Digital Audio Broadcast Equipment
Digital Tape Varispeed Applications
### Features and Benefits
Automatically Senses Sample Frequencies
No Programming Required
Attenuates Sample Clock Jitter
3.3 V–5 V Input and 3.3 V Core Supply Voltages
Accepts 16-/18-/20-/24-Bit Data
Up to 192 kHz Sample Rate
Input/Output Sample Ratios from 7.75:1 to 1:8
Bypass Mode
Multiple AD1896 TDM Daisy-Chain Mode
Multiple AD1896 Matched-Phase Mode
142 dB Signal-to-Noise and Dynamic Range (A-Weighted, 20 Hz–20 kHz BW)
Up to –133 dB THD + N
