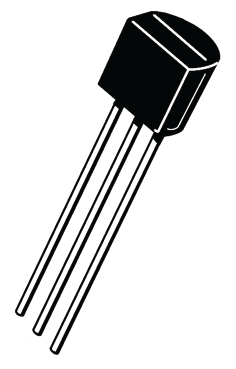

Image is for your reference only,please check specifications for details

AD22100KTZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC173370
Category:
Temperature Sensor
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD22100KTZ Temperature Sensor IC, Voltage, ± 0.5℃, -50℃, +150℃, TO-92, 3Pins
Stock Locations:
Availability:
133 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD22100KTZ is a monolithic voltage output Temperature Sensor with on-chip signal conditioning. It can be operated over the temperature range -50°C to +150°C, making it ideal for use in numerous applications. The signal conditioning eliminates the need for any trimming, buffering or linearization circuitry, greatly simplifying the system design and reducing the overall system cost. Due to its ratio metric nature, it offers a cost effective solution when interfacing to an analogue-to-digital converter.
Accuracy better than ±2% of full scale
Linearity better than ±1% of full scale
Output proportional to temperature x V+
Single-supply operation
Reverse voltage protection
Minimal self heating
High level, low impedance output
Product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges.
