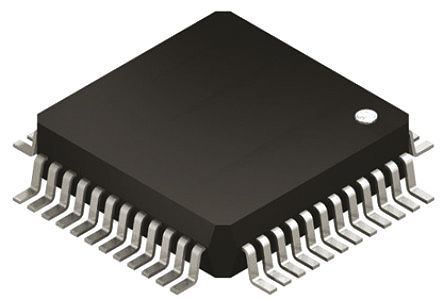

Image is for your reference only,please check specifications for details

AD2S1210CSTZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC241783
Category:
Analog to Digital, ADC IC
Package:
LQFP-48
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD2S1210CSTZ Analog to Digital Converter, 16Bit, 20KSPS, Single, 4.75V, 5.25V, LQFP
Stock Locations:
Availability:
213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never lose the position and speed of a rotating shaft again by implementing this AD2S1210CSTZ digital to synchro and resolver converter from Analog Devices, the information will be converted to a digital format. It has a differential input signal. This device"s digital interface is parallel|serial (4-wire, spi). This synchro resolver has a resolution of 16 bit. This synchro resolver has a temperature range of -40 °C to 125 °C. The item will be shipped in tray orientation. This device uses a single power supply.

Show

AD2S1210CSTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	4.75V (min)
Number of Positions	44 Position
Number of Bits	16 Bit
Power Dissipation	50.0 mW
Sample Rate	20.0 kHz
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	7.2 mm
Size-Width	7.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
