AD2S82ALPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC827659
Category:
Analog to Digital, ADC IC
Package:
PLCC-44
Datasheet:
Datasheet 3D Model
Description:
Data acquisition IC - ADC Analog Devices AD2S82ALPZ 10Bit, 12Bit, 14Bit, 16Bit PLCC 44
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 202.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

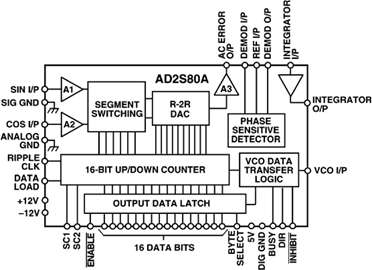

The AD2S80A/AD2S81A/AD2S82A series are monolithic 10-, 12-, 14, or 16-bit tracking resolver-to-digital converters.
The converter allows users to select their own resolution and dynamic performance with external components. This allows the users great flexibility in defining the converter that best suits their system requirements. The converter allows users to select the resolution to be 10, 12, 14, or 16 bits [AD2S81A allows 12 bit resolution only] and to track resolver signals rotating at up to 1040 revs per second (62,400 rpm) when set to 10-bit resolution.
The AD2S80A/AD2S81A/AD2S82A series converts resolver format input signals into a parallel natural binary digital word using a ratiometric tracking conversion method. This ensures high noise immunity and tolerance of long leads allowing the converter to be located remote from the resolver.
The AD2S80A/AD2S81A/AD2S82A series operates over reference frequencies in the range 50 Hz to 20,000 Hz.
### Features and Benefits
AD2S80A/AD2S81A/AD2S82A
Tracking R/D Converter
Ratiometric Conversion
High Max Tracking Rate 1040 RPS
(10 Bits) 10-, 12-, 14-, or
16-Bit Resolution Set by User
Dynamic Performance Set by User
Velocity Output
AD2S81A
12-Bit fixed resolution only
28-Lead DIP package
AD2S82A
VCO output
Data complement facility
44-Lead PLCC package

Show

AD2S82ALPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	PLCC-44
Supply Voltage (DC)	10.8V (min)
Supply Current	12.0 mA
Number of Channels	2 Channel
Number of Positions	44 Position
Number of Bits	16 Bit
Power Consumption	300 mW
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	10.8 V
	Show
Size-Length	16.66 mm
Size-Width	16.66 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
