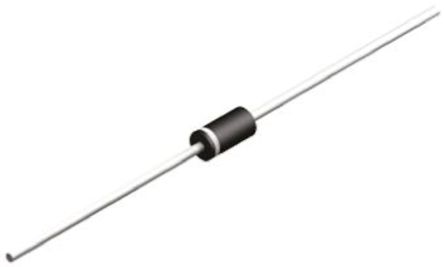

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Zener Diode 30V 1.3W ±5% Through Hole DO-41G
BZX85C30 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-41-2 |
| Voltage Rating (DC) | 30.0 V |
| Capacitance Tolerance | ±7 % |
| Power Rating | 1.00 W |
| Forward Voltage | 1.2V @200mA |
| Power Dissipation | 1000 mW |
| Test Current | 8 mA |
| Zener Voltage | 30 V |
| Maximum Forward Voltage (Max) | 1.2V @200mA |
| Input Power (Max) | 1 W |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 1 W |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 2.72 mm |
| Size-Height | 2.72 mm |
| Operating Temperature | -65℃ ~ 200℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
