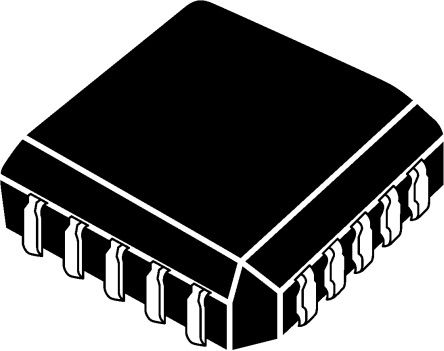

AD2S99APZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC669065
Category:
Timer IC
Package:
PLCC-20
Datasheet:
Datasheet 3D Model
Description:
Controlled Oscillator 0.002MHz to 0.02MHz Programmable Oscillator 20Pin PLCC
Stock Locations:
Availability:
63 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD2S99APZ is a Programmable Sinusoidal Oscillator with synthesized synchronous reference output. The AD2S99APZ programmable sinusoidal oscillator provides sine wave excitation for resolvers and a wide variety of AC transducers. It also provides a synchronous reference output signal (3V p-p square wave) that is phase locked to its SIN and COS inputs. In an application, the SIN and COS inputs are connected to the transducer"s secondary windings. The synchronous reference output compensates for temperature and cabling dependent phase shifts and eliminates the need for external preset phase compensation circuits. The synchronous reference output can be used as a zero crossing reference for resolver-to-digital converters such as Analogue Devices" AD2S80A, AD2S82A, AD2S83 and AD2S90.
Dynamic phase compensation
Programmable excitation frequency
Signal loss detection
Integration

Show

AD2S99APZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PLCC-20
Frequency	2kHz ~ 20kHz
Supply Voltage (DC)	4.75V (min)
Supply Current	8 mA
Load Capacitance	1000 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	20 %
Supply Voltage	5 V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	9.04 mm
Size-Width	8.38 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
