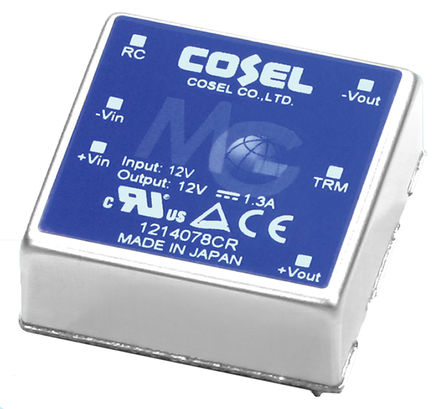

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- High Reliability — Field Failure Rate Less Than 0.001%
- Low EMI — Shielded Die-Cast Housing Metal Case
- Fully Regulated and 1500 VDC Isolation Between Input and Output
- Internal Fuse Protection for Safety
- Over Current Protection Circuitry
- Wide Operating Temperature Range (–40°C-85°C)
- Trim Function
- UL, C-UL, TÜV, CE Safety Approvals
MGS152405 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Power Rating | 15 W |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 3 A |
| Output Power | 15 W |
| Isolation Voltage | 1.5 kV |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 18 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 18V ~ 36V |
| Show | |
| Size-Length | 1 in |
| Size-Width | 1 in |
| Size-Height | 0.39 in |
| Weight | 20 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
