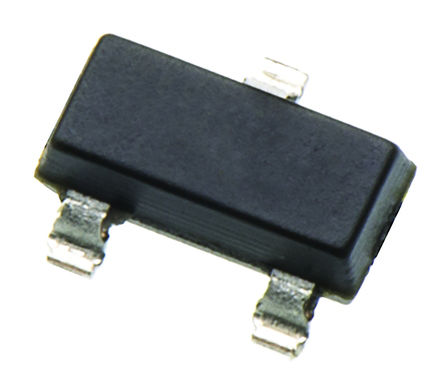

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long-term stability of the on-chip thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z input, a feature that greatly increases its flexibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this can be reduced to values as low as 3 V.
- The wide spectrum of applications and the availability of several grades commend this multiplier as the first choice for all new designs. The AD534J (±1% maximum error), AD534K (±0.5% maximum), and AD534L (±0.25% maximum) are specified for operation over the 0°C to +70°C temperature range. The AD534S (±1% maximum) and AD534T (±0.5% maximum) are specified over the extended temperature range, −55°C to +125°C. All grades are available in hermetically sealed TO-100 metal cans and SBDIP packages. AD534K, AD534S, and AD534T chips are also available.
- **APPLICATIONS**
- High quality analog signal processing
- Differential ratio and percentage computations
- Algebraic and trigonometric function synthesis
- Wideband, high crest rms-to-dc conversion<
- Accurate voltage controlled oscillators and filters
- Available in chip form
- ### Features and Benefits
- Pretrimmed to ±0.25% max 4-Quadrant
- Error (AD534L)
- All Inputs (X, Y and Z) Differential,
- High Impedance for [(X1 - X2) (Y1 - Y2)/10 V] + Z2 Transfer Function
- Scale-Factor Adjustable to Provide up to X100 Gain
- Low Noise Design: 90 µV rms, 10 Hz-10 kHz
- Low Cost, Monolithic Construction
- Excellent Long Term Stability
AD534KDZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | CDIP-14 |
| Supply Voltage (DC) | 8.00 V, 18.0 V (max) |
| Output Voltage | 11 V |
| Supply Current | 4 mA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 14 Position |
| Number of Bits | 4 Bit |
| Power Dissipation | 500 mW |
| Slew Rate | 20.0 V/μs |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 10 V |
| Show | |
| Size-Length | 17.78 mm |
| Size-Width | 7.37 mm |
| Size-Height | 2.41 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
