Description

* Pretrimmed to ±0.25% maximum 4-quadrant error (AD534L) * All inputs (X, Y, and Z) differential, high impedance for[(X1 - X2)(Y1 - Y2)/10 V] + Z2 transfer function * Scale factor adjustable to provide up to ×100 gain * Low noise design: 90 μV rms, 10 Hz to10 kHz * Low cost, monolithic construction * Excellent long-term stability

Show

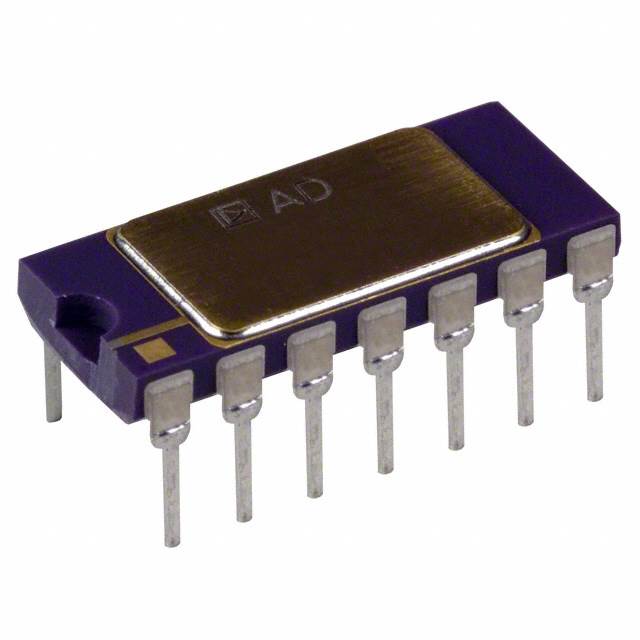

AD534SD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-14
Supply Current	6.00 mA
Number of Bits	4 Bit
Power Dissipation	500 mW
Slew Rate	20.0 V/μs
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	17.78 mm
Size-Width	7.37 mm
Size-Height	2.41 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
