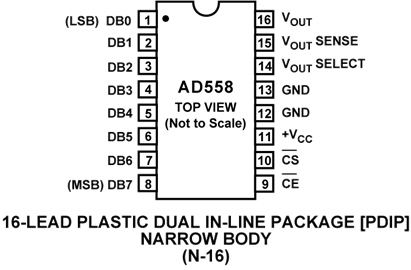

Image is for your reference only,please check specifications for details
- AD558JN - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC11086359
-
Category:Digital to Analog, DAC IC
-
Package:PDIP-16
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter 1Channel Rail to Rail 8Bit 16Pin PDIP
-
Stock Locations:
-
Availability:1,053 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.82
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD558 DACPORT® is a complete voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system.
- The performance and versatility of the DACPORT is a result of several recently-developed monolithic bipolar technologies. The complete microprocessor interface and control logic is implemented with integrated injection logic (I2 L), an extremely dense and low power logic structure that is process-compatible with linear bipolar fabrication. The internal precision voltage reference is the patented low voltage bandgap circuit which permits full-accuracy performance on a single +5 V to +15 V power supply. Thin-film silicon-chromium resistors provide the stability required for guaranteed monotonic operation over the entire operating temperature range (all grades), while recent advances in laser-wafer-trimming of these thin-film resistors permit absolute calibration at the factory to within ±1 LSB; thus no user-trims for gain or offset are required. A new circuit design provides voltage settling to ±1/2 LSB for a full-scale step in 800 ns.
- The AD558 is available in four performance grades. The AD558J and K are specified for use over the 0°C to +70°C temperature range, while the AD558S and T grades are specified for -55°C to +125°C operation. The "J" and "K" grades are available either in 16-pin plastic (N) or hermetic ceramic (D) DIPS. They are also available in 20-pin JEDEC standard PLCC packages. The "S" and "T" grades are available in the 16-pin hermetic ceramic DIP package.
- DACPORT is a registered trademark of Analog Devices, Inc.
- ### Features and Benefits
- Complete 8-bit DAC
- Voltage Output-2 Calibrated Ranges
- Internal Precision Bandgap Reference
- Single-Supply Operation: +5 V to +15 V
- Full Microprocessor Interface
- Fast: 1 µs Voltage settling to ±1/2 LSB
- Low Power: 75 mW
- No User Trims
- Guaranteed Monotonic Over Temperature
- All Errors Specified Tmin to Tmax
- Small 16-Pin DIP and 20-PIN PLCC Packages
- Single Laser-Wafer-Trimmed Chip for Hybrids
AD558JN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 16 Pin |
| Case/Package | PDIP-16 |
| Supply Voltage (DC) | 16.5V (max) |
| Number of Outputs | 1 Output |
| Output Current | 5.00 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 8 Bit |
| Power Dissipation | 0.375 W |
| Resolution (Bits) | 8.0 Bit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 375 mW |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Height | 4.57 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
| ECCN Code | EAR99 |
