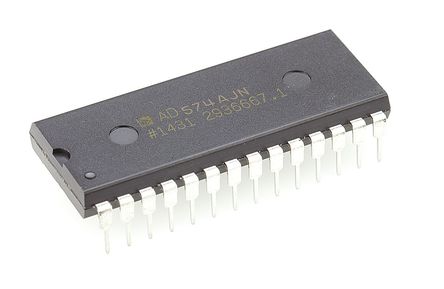

AD574AJNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC570304
Category:
Analog to Digital, ADC IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD574AJNZ Analog to Digital Converter, Dual, 12Bit, Dual (+/-), -11.4V, 16.5V, DIP
Stock Locations:
Availability:
58 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 67.22

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD574AJNZ is a complete 12-bit successive-approximation Analog-to-digital Converter (ADC) with 3-state output buffer circuitry for direct interface to a 8 or 16-bit microprocessor bus. A high precision voltage reference and clock are included on-chip and the circuit guarantees full-rated performance without external circuitry or clock signals. The AD574A design is implemented using analog devices bipolar/I²L process and integrates all analog and digital functions on one chip. Offset, linearity and scaling errors are minimized by active laser-trimming of thin-film resistors at the wafer stage. The voltage reference uses an implanted buried Zener for low noise and low drift. On the digital side, I²L logic is used for the successive-approximation register, control circuitry and 3-state output buffers.
Guaranteed linearity over temperature
No missing codes over temperature
35µs Maximum conversion time
Buried zener reference

Show

AD574AJNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Digital Logic Level	SAR
Supply Voltage (DC)	-11.4 V (min)
Supply Current	30 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	12 Bit
Power Dissipation	390 mW
Power Consumption	390 mW
Resolution (Bits)	12.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	725 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	16.5 V
	Show
Size-Length	39.75 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
