Description

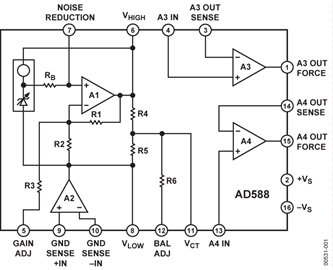

The AD588JQ is a Multiple Output High Precision Dual-tracking Reference that represents a major advance in state-of-the-art monolithic voltage references. Low initial error and low temperature drift give the AD588 absolute accuracy performance previously not available in monolithic form. It uses a proprietary ion-implanted, buried Zener diode and laser-wafer drift trimming of high stability thin film resistors to provide outstanding performance. The reference includes the basic reference cell and three additional amplifiers that provide pin programmable output ranges. The amplifiers are laser trimmed for low offset and low drift to maintain the accuracy of the reference. The amplifiers are configured to allow Kelvin connections to the load and/or boosters for driving long lines or high current loads, delivering the full accuracy of the AD588 where it is required in the application circuit.
Low drift
Low initial error
Pin programmable output
Flexible output force and sense terminals
High impedance ground sense
ESD sensitive device, take proper precaution while handling the device.

Show

AD588JQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	CDIP-16
Capacitance Tolerance	±0.03 %
Input Voltage (DC)	12.0V ~ 36.0V
Output Voltage	10 V
Output Current	10 mA
Supply Current	10 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Input Voltage (Max)	36 V
Input Voltage (Min)	12 V
Output Voltage (Max)	10 V
Output Current (Max)	10 mA
Maximum Forward Voltage (Max)	10 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Junction Temperature (Max)	70 ℃
Input Voltage	10.8V ~ 36V
	Show
Size-Length	21.34 mm
Size-Width	7.87 mm
Size-Height	3.56 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Temperature Coefficient	±3 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
