AD603AQ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC397033
Category:
Amplifier, Buffer IC
Package:
CDIP-8
Datasheet:
Datasheet 3D Model
Description:
Programmable/Variable Amplifier, 1Channels, 1 Amplifier, 90MHz, -40℃, 85℃, ± 4.75V to ± 6.3V
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

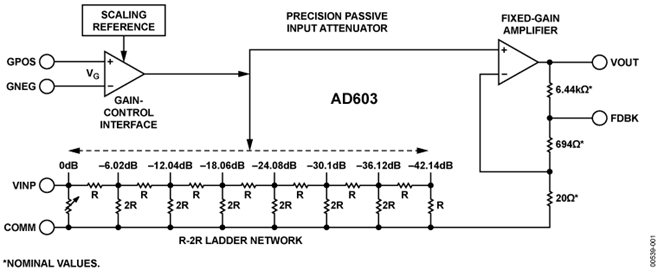

The AD603AQ is a low noise Voltage-controlled Amplifier for use in RF and IF AGC systems. It provides accurate, pin-selectable gains of -11 to +31dB with a bandwidth of 90MHz or +9 to +51dB with a bandwidth of 9MHz. Any intermediate gain range may be arranged using one external resistor. The input referred noise spectral density is only 1.3nV/√Hz and power consumption is 125mW at the recommended ±5V supplies. The decibel gain is linear in dB, accurately calibrated and stable over temperature and supply. The gain is controlled at a high impedance (50MR), low bias (200nA) differential input, the scaling is 25mV/dB, requiring a gain control voltage of only 1V to span the central 40dB of the gain range. An overrange and underrange of 1dB is provided whatever the selected range. The gain control response time is less than 1µs for a 40dB change. The differential gain control interface allows the use of either differential or single-ended positive or negative control voltages.
Linear-in-dB gain control
Bandwidth independent of variable gain
±0.5dB Typical gain accuracy
400mW Internal power dissipation

Show

AD603AQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	CDIP-8
Supply Current	12.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	400 mW
Input Capacitance	2.00 pF
Bandwidth	90 MHz
Slew Rate	275 V/μs
Gain Bandwidth Product	90 MHz
Gain	31.0 dB
Input Bias Current	200 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	90 MHz
Power Dissipation (Max)	400 mW
Supply Voltage (Max)	6.3 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	10.29 mm
Size-Width	7.87 mm
Size-Height	3.56 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
