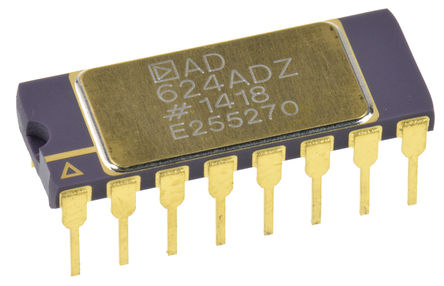

AD624ADZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1287744
Category:
Instrumentation Amplifier IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
Instrument Amplifier, 1 Amplifier, 200µV, 5V/µs, 25MHz, ± 6V to ± 18V, DIP
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 51.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD624ADZ is a high precision low noise Instrumentation Amplifier designed primarily for use with low level transducers, including load cells, strain gauges and pressure transducers. A combination of low noise, high gain accuracy, low gain temperature coefficient and high linearity make the AD624 ideal for use in high resolution data acquisition systems. The AD624C has an input offset voltage drift of less than 0.25µV/°C, output offset voltage drift of less than 10µV/°C, CMRR above 80dB at unity gain (130dB at G = 500) and a maximum nonlinearity of 0.001% at G = 1. In addition to these outstanding DC specifications, the AD624 exhibits superior AC performance as well. A 25MHz gain bandwidth product, 5V/µs slew rate and 15µs settling time permit the use of the AD624 in high speed data acquisition applications.
No external components required
Internally compensated

Show

AD624ADZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	6.00V (min)
Supply Current	3.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	0.42 W
Common Mode Rejection Ratio	110 dB
Bandwidth	25 MHz
Slew Rate	5.00 V/μs
Gain Bandwidth Product	25 MHz
Input Offset Voltage	200 µV
Input Bias Current	50 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	1 MHz
Gain Bandwidth	75 dB
Power Dissipation (Max)	420 mW
Minimum CMRR Range	75 dB
Supply Voltage	6V ~ 18V
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	6 V
	Show
Size-Length	21.34 mm
Size-Width	7.87 mm
Size-Height	3.56 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
