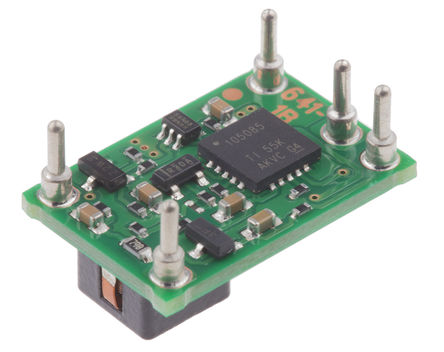

Image is for your reference only,please check specifications for details

PTN78000WAH - TI
Manufacturer:
TI
ManyChip's Part#:
MC3041121
Category:
DC to DC Converter, DC/DC Converter
Package:
DIP-5
Datasheet:
Datasheet 3D Model
Description:
Non Isolated Board Mount DC-DC Converter, DIP, 22.5W, 2.5V, 12.6V, 1.5A, 7V
Stock Locations:
Availability:
2,607 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78000WAH from Texas Instruments is an adjustable switching regulator module. The PTN78000 provides high efficiency, step-down voltage conversion for loads of up to 1.5A. The output voltage is set using a single external resistor. PTN78000WAH may be set to any value within the range of 2.5V to 12.6V. Output voltage of the PTN78000WAH can be as little as 2V lower than the input allowing operation down to 7V with an output voltage of 5V.
Input voltage range from 7V to 36V
Output voltage range from 2.5V to 12.6V
High efficiency up to 95%
On/Off inhibit
Undervoltage lockout
Output current limit
Overtemperature shutdown
Operating temperature range form -40°C to 85°C
This device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.

Show

PTN78000WAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	DIP-5
Frequency	550 kHz
Supply Voltage (DC)	20.0 V
Power Rating	18 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 36.0V
Output Voltage	2.5V ~ 12.6V
Output Current	1.5 A
Number of Regulated Outputs	1 Output
Output Power	22.5 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	7 v
Output Voltage (Max)	12.6 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1.5 A
Input Power (Max)	22.5 W
Input Power (Max)	18.9 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	20 V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	7 V
Input Voltage	7V ~ 36V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
