Description
- Product Details

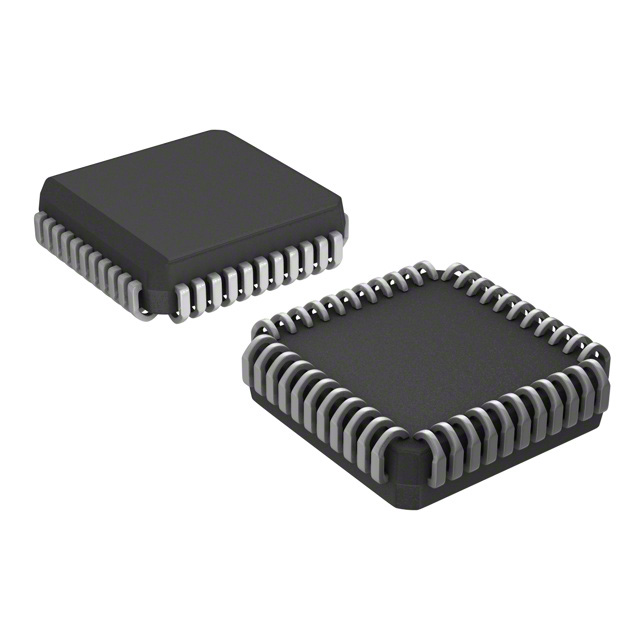

- The AD664 is four complete 12-bit, voltage-output DACs on one monolithic IC chip. Each DAC has a double-buffered input latch structure and a data readback function. All DAC read and write operations occur through a single microprocessor-compatible I/O port.
- The I/O port accommodates 4-, 8- or 12-bit parallel words allowing simple interfacing with a wide variety of microprocessors. A reset to zero control pin is provided to allow a user to simulta-neously reset all DAC outputs to zero, regardless of the contents of the input latch. Any one or all of the DACs may be placed in a transparent mode allowing immediate response by the outputs to the input data.>/p>
- The analog portion of the AD664 consists of four DAC cells, four output amplifiers, a control amplifier and switches. Each DAC cell is an inverting R-2R type. The output current from each DAC is switched to the on-board application resistors and output amplifier. The output range of each DAC cell is programmed through the digital I/O port and may be set to unipolar or bipolar range, with a gain of one or two times the reference voltage. All DACs are operated from a single external reference.
- The functional completeness of the AD664 results from the combination of Analog Devices" BiMOS II process, laser-trimmed thin-film resistors and double-level metal interconnects.
- ### Features and Benefits
- Four Complete Voltage Output DACs
- Date Register Readbck Feature
- "Reset to Zero" Override
- Multiplying Operation
- Double-Buffered Latched
- Surface Mount and DIP Packages
- MIL-STD-883 Compliant Versions Available
AD664JP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | PLCC-44 |
| Number of Outputs | 4 Output |
| Number of Channels | 4 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 0.525 W |
| Sample Rate | 125 ksps |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 525 mW |
| Number of DACs | 4 DAC |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
