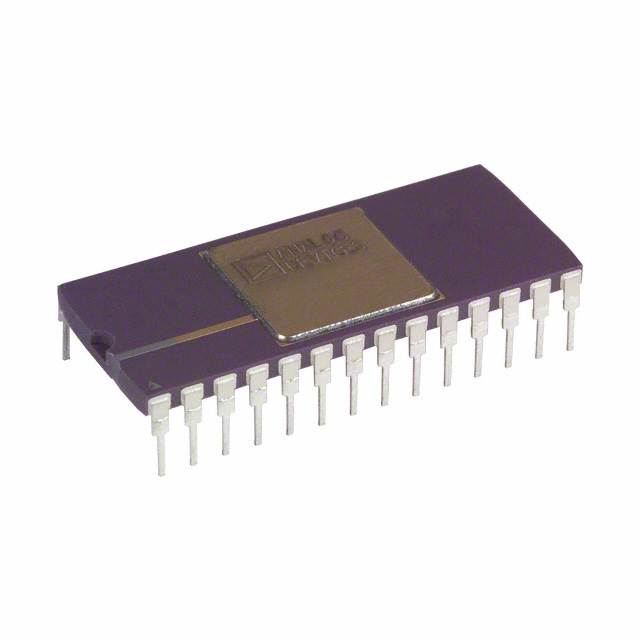

Image is for your reference only,please check specifications for details

AD676JD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC836169
Category:
Analog to Digital, ADC IC
Package:
CDIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD676JD Analog to Digital Converter, 16Bit, 100KSPS, 5V, 12V, DIP
Stock Locations:
Availability:
274 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 189.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD676 is a multipurpose 16-bit parallel output analog-to-digital converter which utilizes a switched-capacitor/charge redistribution architecture to achieve a 100 kSPS conversion rate (10 µs total conversion time). Overall performance is optimized by digitally correcting internal nonlinearities through on-chip autocalibration.
The AD676 circuitry is segmented onto two monolithic chips- a digital control chip fabricated on Analog Devices DSP CMOS process and an analog ADC chip fabricated on our BiMOS II process. Both chips are contained in a single package.
The AD676 is specified for ac (or "dynamic") parameters such as S/(N+D) Ratio, THD and IMD which are important in signal processing applications. In addition, dc parameters are specified which are important in measurement applications.
The AD676 operates from +5 V and ±12 V supplies and typically consumes 360 mW during conversion. The digital supply (VDD ) is separated from the analog supplies (VCC , VEE ) for reduced digital crosstalk. An analog ground sense is provided for the analog input. Separate analog and digital grounds are also provided.
The AD676 is available in a 28-pin plastic DIP or 28-pin side-brazed ceramic package. A serial-output version, the AD677, is available in a 16-pin 300 mil wide ceramic or plastic package.
### Features and Benefits
Auto-calibrating
On-Chip Sample-Hold Function
Parallel Output Format
16 Bits No Missing Codes
±1 LSB INL
–97 dB THD
90 dB S/(N+D)
1 MHz Full Power Bandwidth

Show

AD676JD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	CDIP-28
Digital Logic Level	SAR
Supply Voltage (DC)	5.00V (min)
Supply Current	14.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Bits	16 Bit
Power Dissipation	480 W
Sample Rate	100 ksps
Resolution (Bits)	16.0 Bit
Input Capacitance	50.0 pF
Input Impedance	1.00 Ω
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	480 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	12 V
Supply Voltage (Min)	5 V
	Show
Size-Height	4.2 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
